超快的响应速度,无移动部件结构紧凑
医学,航天航空,传感

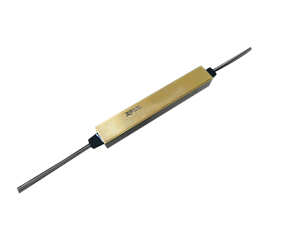

1x2,2x2 电光NS光开关 (SM )
特性
优异的光学特性
超快的响应速度
高可靠性
全固态结构
无移动部件结构紧凑
光信号切换
高速网络保护
精密仪器
规格参数
NS高速关开关 1x2 2x2NS High-speed optical switch 1x2 2x2 最小Min.典型Typ.最大Max.单位Unit波长Wavelength1310/1550nm耗损Loss 0.81.2dB串扰Crosstalk182535dB偏振相关损耗PDL 0.150.3dB回波耗损Return loss455060dB响应时间Response time10ns or 300nsns光纤类型Fiber type SMF-28e输入光功率Input optical power 300 mW驱动电压Driving voltage<400V工作温度Operating temperature-5 70oC储存温度Storage temperature-40 85oC尺寸Size131.75*7*8mm or others
NS高速关开关 1x2 2x2
NS High-speed optical switch 1x2 2x2
最小
Min.
典型
Typ.
最大
Max.
单位
Unit
波长
Wavelength
1310/1550
nm
耗损
Loss
0.8
1.2
dB
串扰
Crosstalk
18
25
35
偏振相关损耗
PDL
0.15
0.3
回波耗损
Return loss
45
50
60
响应时间
Response time
10ns or 300ns
ns
光纤类型
Fiber type
SMF-28e
输入光功率
Input optical power
300
mW
驱动电压
Driving voltage
<400
V
工作温度
Operating temperature
-5
70
oC
储存温度
Storage temperature
-40
85
尺寸
Size
131.75*7*8mm or others
安装尺寸图
订货信息
类型Type波长Wavelength通道Channel光纤类型Fiber type纤长Fiber length连接头Connector10=10ns30=300ns13=1310nm15=1550nm1=1x22=2x21=SMF-282=PM1=0.5 M2=1 M3=None0=None1=FC/APC2= FC/PC
类型
Type
通道
Channel
纤长
Fiber length
连接头
Connector
10=10ns
30=300ns
13=1310nm
15=1550nm
1=1x2
2=2x2
1=SMF-28
2=PM
1=0.5 M
2=1 M
3=None
0=None
1=FC/APC
2= FC/PC
波长范围(nm):1310/1550,响应时间(ns):10ns或300ns,驱动电压(V):<400
